INOX HOT SANITARY WATER TANKS

200L - 320L - 500L with 1 and 2 spirals


The material from which the stainless steel hot sanitary water tank is made is SUS304, stainless steel, which places it in the category of extremely suitable and high-quality tanks for the preparation of hot sanitary water. The insulation consists of a 50 mm thick polyurethane sponge. The tank has an integrated electric heater with a power of 3kW, 230V. The maximum working pressure of the storage tank is 6 bar, while the maximum working temperature of the storage tank is 90°C.

All Inox hot water storage tanks have a spiral (corrugated, wave-like inox pipe) with a surface area of 2.26 m², making them suitable for connection with heat pumps.

The stainless steel hot sanitary water tank with two spirals has two corrugated, wavy spirals with a surface area of ​​2.26 m2 each with a cross section of 5/4", which makes it suitable for connecting to a heat pump and another heat generator.



OTHER INFORMATION

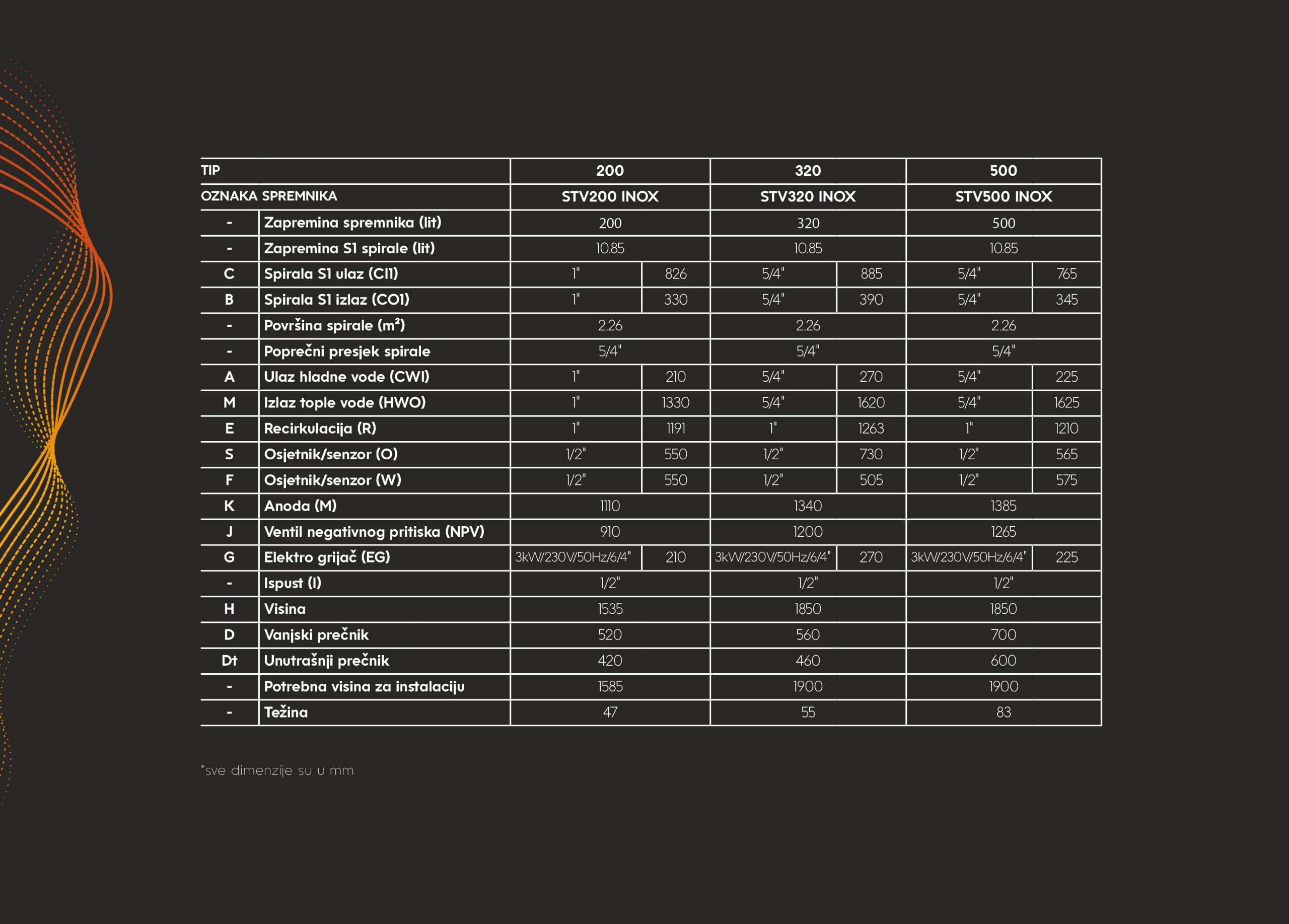

Technical data - 1 spiral

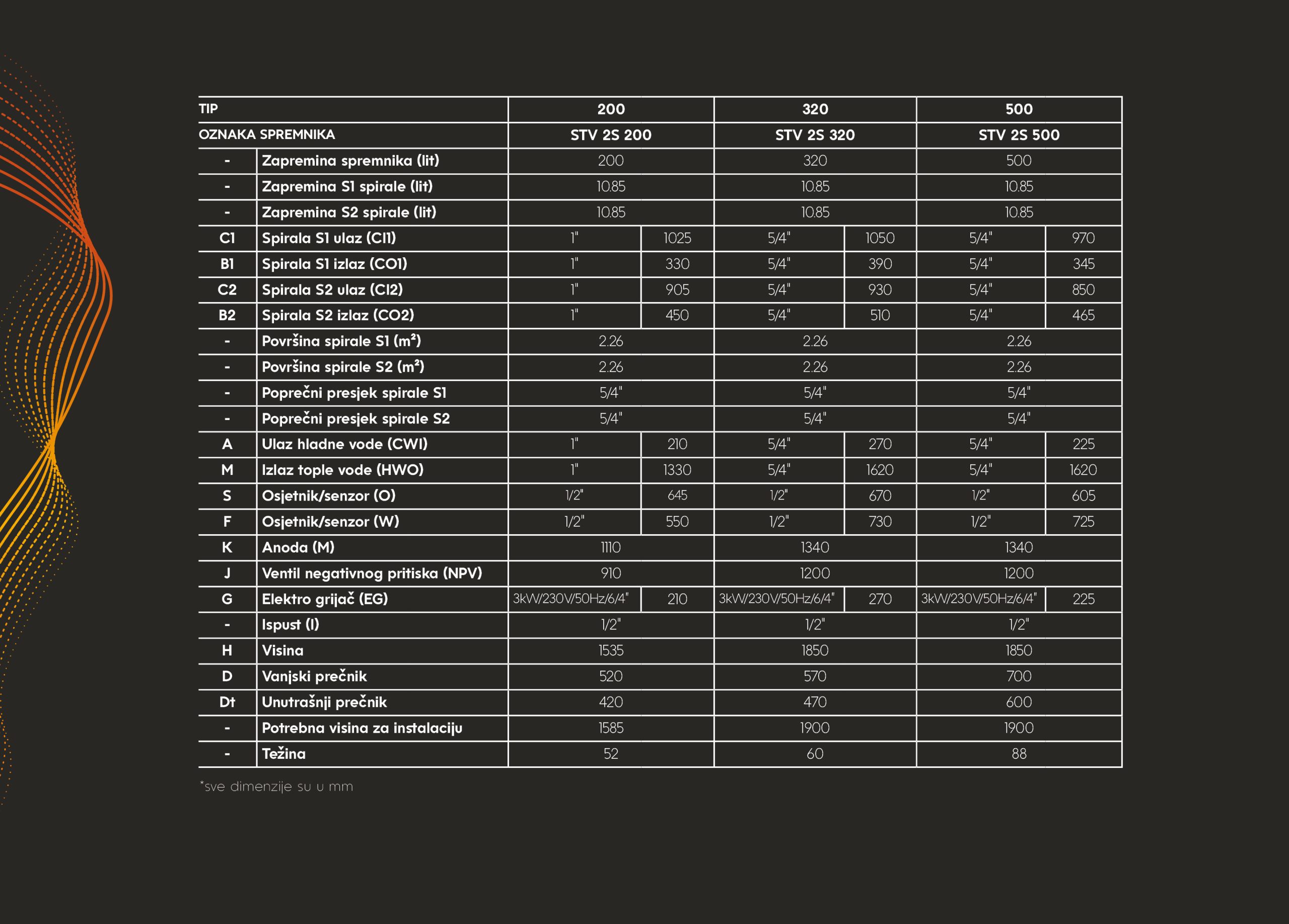

Technical data - 2 spiral


Manual for use and handling
